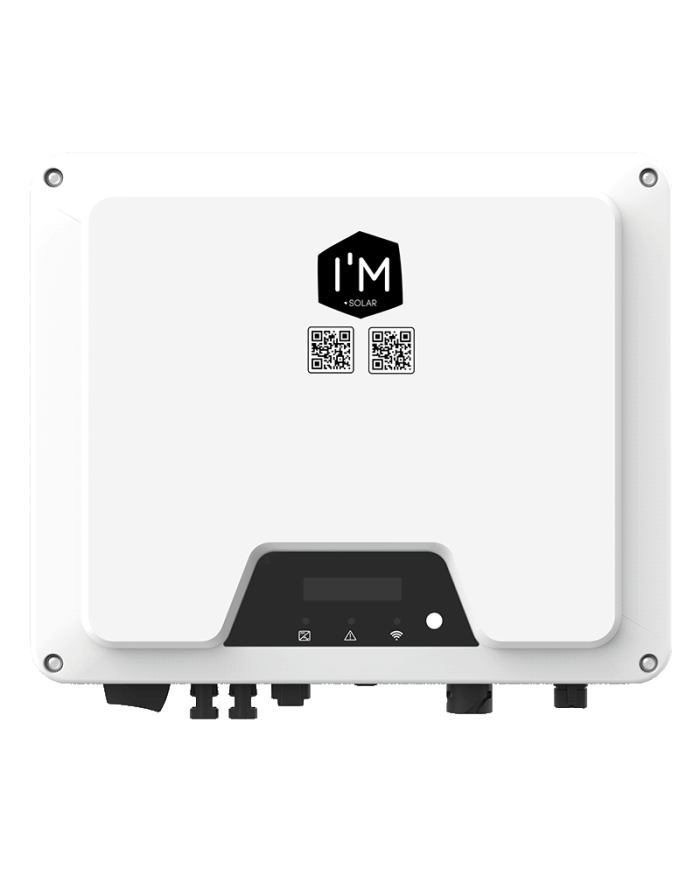

I'M SOLAR three-phase Hybrid inverter HHT-5K - Soconnected

Connection with high voltage battery

The I'M SOLAR Hybrid HHT-5K inverter works with high voltage batteries. High voltage batteries allow high discharge power up to 5000W instantaneous. You can answer a high power electricity need via your solar batteries in the evening or in the morning, without using the electricity network.

Wifi Internet monitoring

The I'M SOLAR Hybrid Inverter inverter is equipped with Internet WIFI supervision at any time. The data is sent to I'M SOLAR Cloud. Thanks to the application on mobile, you monitor in real time the performance of your solar installation.

Scalable installation

The I'M SOLAR hybrid inverter HHT-5K is ideal for a first installation or for the evolution of an existing photovoltaic installation. You start the installation without batteries and add the PYLONTECH or BYD batteries per 5kWh module, and even increase the storage of these batteries according to your actual need.

Integrated consumables management

The I'M SOLAR inverter is ideal for all photovoltaic installations dedicated to self-consumption. Electrical consumables are managed remotely through an application. Either we define an automatic strategy according to the production of solar panels or manually. (Example: programming washing cycles every day at 14h if the production of solar panels exceeds 500W). In addition, with the I'M SOLAR application you can control your home with connected devices such as: connected socket, relay in a circuit breaker on your electrical panel, 3 in 1 sensor (presence sensor, temperature and brightness) and bulb connected.

Management of surplus injection

Smart Inverter I'M SOLAR regulates the power of solar panels to provide only the real need. Thus any export production are no longer re-injected into the electricity grid free.

Off grid management

This inverter works with or without a grid without any problems. This inverter is equipped with 2 outputs: a GRID output that works when there is a grid and an EPS output that works when there is no grid. This inverter switches to one or the other output automatically. The switchover is done in less than 10ms.

Three phase inverter

This I'M SOLAR inverter connects to the house with the three-phase grid.

Parallel operation with other I'M SOLAR inverters

This inverter can work in parallel with the same I'M SOLAR inverter to increase the power of your installation. Each inverter must have its own battery pack. It is not possible to mix battery packs.
